WAGO 221-420: A 10-Port Lever Connector for High-Density Splicing and Distribution

For more than 30 years, US Automation Controls LLC has helped engineers and procurement teams stay current on WAGO product updates and practical wiring options. One of the newest high-capacity additions to the WAGO 221 Series is the 221-420—essentially a 10-port version of the familiar 221 lever nuts. It’s designed to consolidate multiple conductors into a single compact connector while keeping the same tool-free lever operation many installers already standardize on.

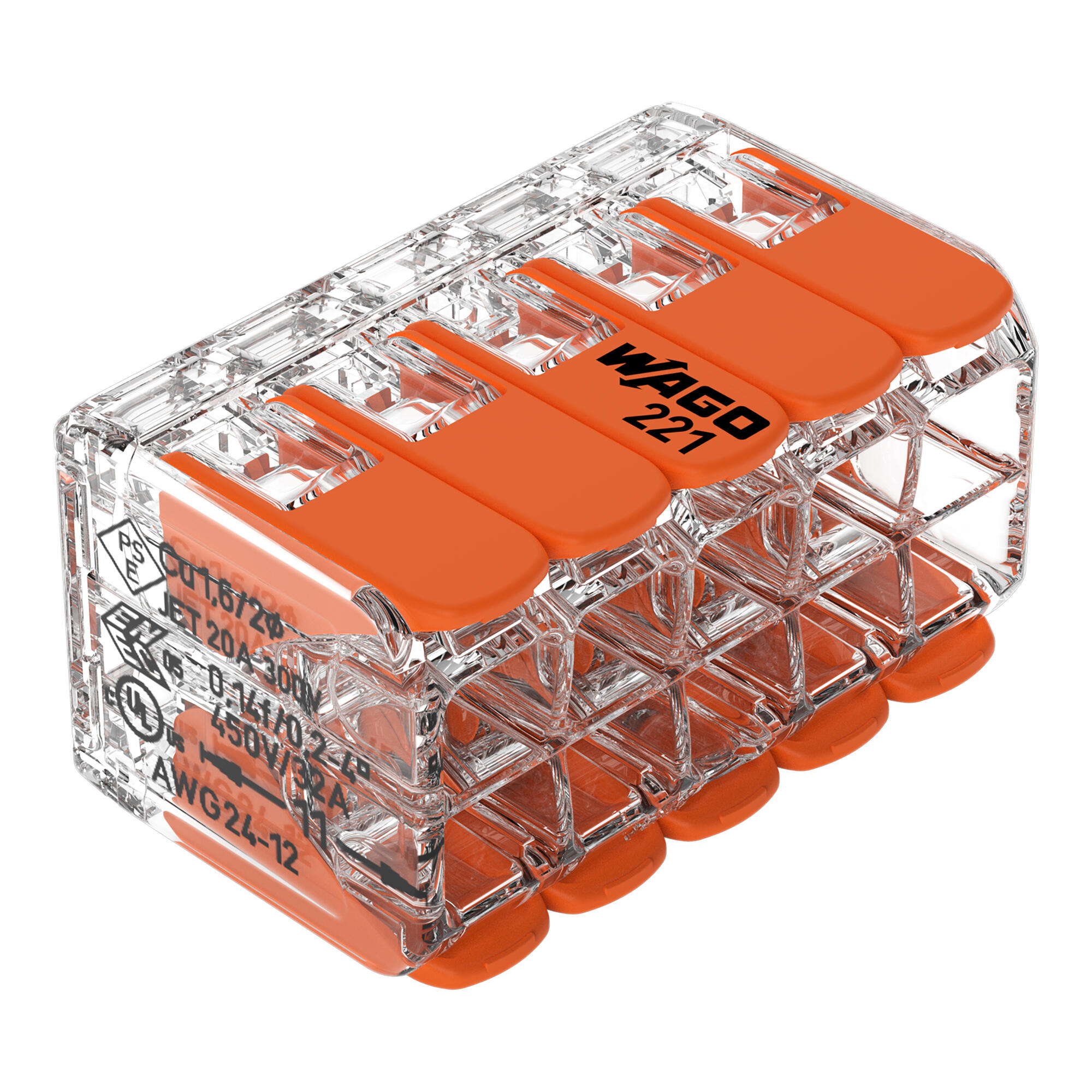

WAGO 221 Series splicing connector with levers, transparent housing

WAGO 221 Series splicing connectors use lever-actuated spring clamp technology in a compact, transparent housing.

What’s new: the 221-420 in the 221 Series lineup

The 221-420 is built for situations where multiple conductors need to be combined or distributed in one place—without stacking several smaller connectors or using a DIN-rail distribution block.

  • Accepts up to 10 conductors in one connector

  • Replaces multiple smaller connectors or wire nuts for cleaner, more manageable wiring

  • Ideal for junction boxes, lighting distribution, and panel wiring

  • Basically a mini distribution block without needing DIN rail mounting

Key features engineers care about

Universal conductor compatibility (one connector across common wire types)

  • Handles solid, stranded, and fine-stranded wires

  • Wire range: 12–24 AWG (≈ 0.2–4 mm²)

  • Helps reduce the need to stock different connector types for different conductor constructions

Tool-free lever technology (fast, rework-friendly terminations)

Operation is consistent across the 221 family:

  • Open lever → insert wire → close lever

  • No crimping, twisting, or tools required for termination

  • Fully reusable and re-terminable (useful for service work, changes, and troubleshooting)

Transparent housing (visual confirmation)

  • Transparent housing supports visual confirmation of proper wire insertion

  • Helps reduce wiring errors and callbacks in the field

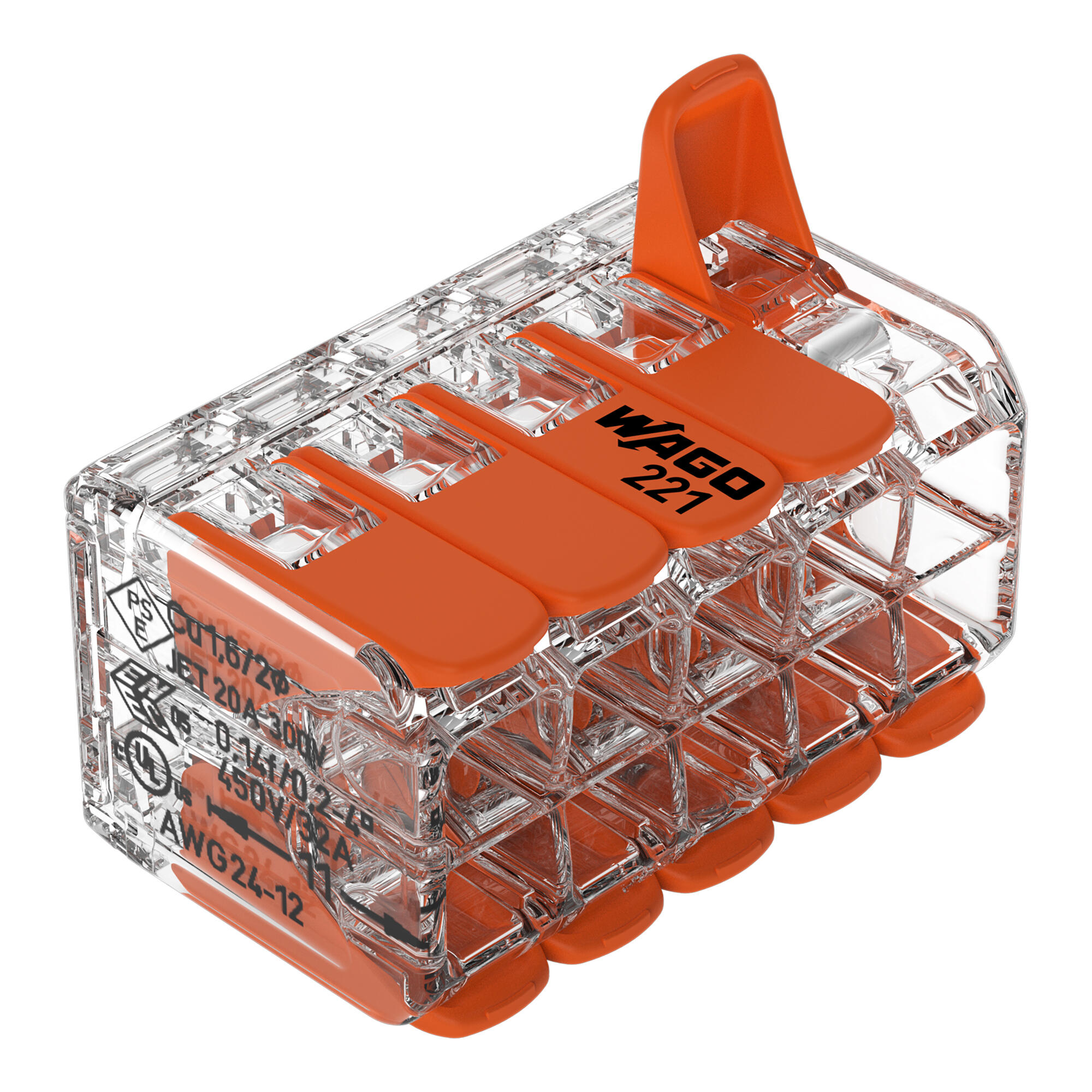

WAGO lever connector showing multiple conductor entries and transparent housing

Multiple ports in one connector support high-density splicing while keeping each conductor individually retained.

Technical specs and ratings (from the WAGO Installation Connectors catalog, Edition 2026/1)

In the WAGO Installation Connectors catalog, the 221 Series (4 mm², transparent housing) is specified with the following connection method, strip lengths, and ratings. These values are commonly referenced when selecting 221 Series lever connectors for panel and field wiring.

Description and installation (221 Series)

  • Connection technology: CAGE CLAMP®

  • Termination method: Lift the lever to open the clamping unit and insert a stripped conductor; then lower the lever to close the clamp

  • Testing: Testing via test slots

  • Strip length (4 mm²): 11 mm (0.43 inch)

  • Strip length (6 mm²): 12 … 14 mm (0.47 … 0.55 inch)

Connection data (221 Series, 4 mm² / 12 AWG)

  • Connectable conductor materials: Copper

  • Nominal cross-section: 4 mm² / 12 AWG

  • Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG

  • Stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG

  • Fine-stranded conductor: 0.14 … 4 mm² / 24 … 12 AWG

  • Strip length: 11 mm / 0.43 inches

Electrical data (221 Series, 4 mm² / 12 AWG)

  • Ratings per EN 60664: Nominal voltage 450 V; Rated impulse withstand voltage 4 kV; Rated current 32 A

  • Approvals per UL 486C: Rated voltage 600 V; Rated current 20 A

Note on real-world limits: application-dependent factors (wire size, ambient temperature, enclosure fill, duty cycle, and applicable code requirements) can affect allowable current. The catalog also notes an operating ambient temperature of +85 °C and temperature marking T85 per EN 60998.

Why the 221-420 is useful in high-conductor-count work

  • Major time savings: often faster than traditional wire nuts or terminal strips, especially when many conductors meet in one location

  • Space efficiency: one 10-port connector can replace multiple 2-, 3-, or 5-port connectors for cleaner layouts in tight boxes

  • Reduced inventory complexity: one part can replace several SKUs in common splicing patterns

  • Improved reliability & safety: spring clamp technology supports consistent contact pressure and vibration resistance; commonly referenced ratings include up to 600V and ~20A (application dependent)

  • Flexibility in the field: quick disconnect/reconnect supports prototyping, service work, and retrofits

Where it fits vs. other WAGO 221 models

If your team already uses the 221 Series, the 221-420 extends the same workflow into higher-density splicing and distribution.

  • 221-412 — 2 ports — Simple splices

  • 221-413 — 3 ports — Branch connections

  • 221-415 — 5 ports — Small distribution

  • 221-420 — 10 ports — High-density splicing / distribution

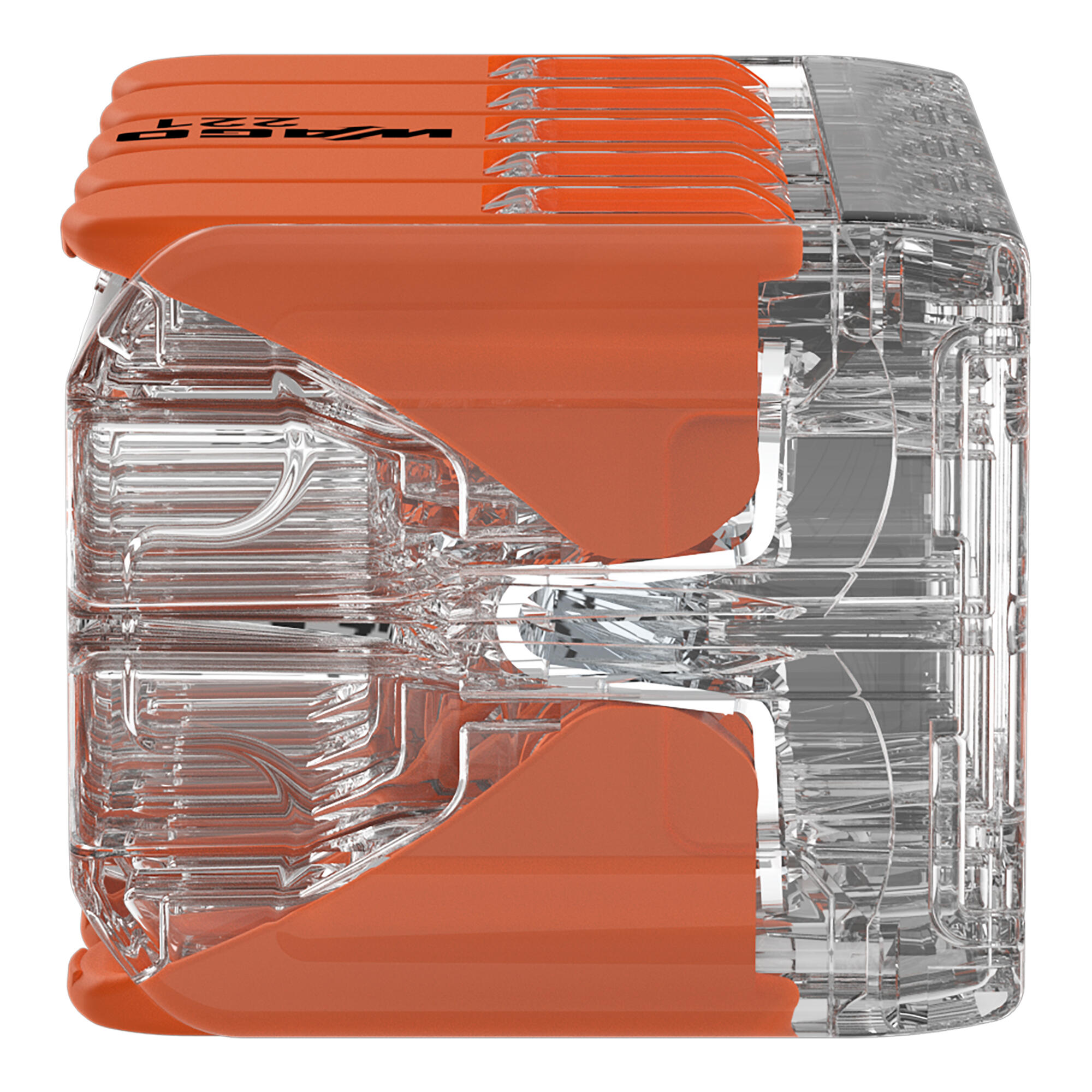

WAGO 221 Series connector ports and lever actuation detail

Lever actuation supports fast termination and re-termination while maintaining a compact footprint.

Common applications

  • Junction boxes: consolidating multiple branch circuits or device feeds without stacking multiple small connectors

  • Lighting distribution: splitting a feed to multiple luminaires or combining multiple fixture leads cleanly

  • Panel wiring: local distribution points where DIN rail space is limited or where a quick, serviceable splice is preferred

  • OEM builds and prototypes: fast changes during validation and rework

  • Retrofits and service calls: simpler disconnect/reconnect when troubleshooting or replacing devices

Conclusion

The WAGO 221-420 expands the 221 family into high-density wiring applications by combining 10 ports, universal conductor compatibility, and the familiar tool-free lever operation in a compact, transparent connector. For teams that routinely bundle multiple smaller lever nuts together, the 221-420 can simplify layouts, speed installation, and support cleaner service work—especially in lighting, junction boxes, and control panels.
